100 in stock

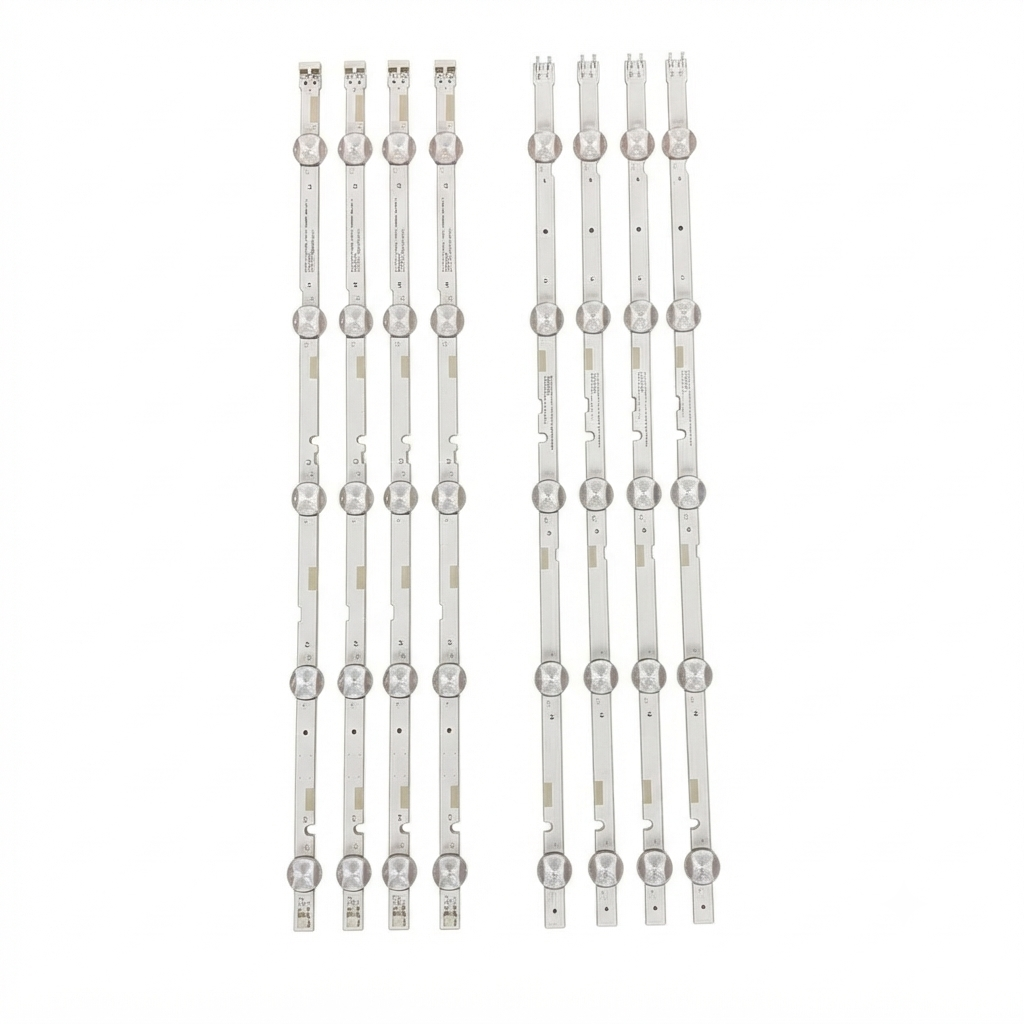

| Product Name | LED Backlight Strip for Samsung UA49N5300AR / UE49M5002AK 49 Inch LED TV |
| Compatible Brand | Samsung |
| Compatible TV Models | Samsung UA49N5300AR / Samsung UE49M5002AK |
| Compatible TV Size | 49 Inch |
| TV Type | LED TV |
| LED Configuration | 10 LED (5+5) Paired Design |
| LEDs Per Strip | 5 LEDs |
| LED Type | SMD LED |
| Number of Pairs | 4 Pairs |
| Total Strips in Set | 8 Strips (4 Pair Set) |
| Installation Type | Direct Plug-in Replacement |
| Part Type | LED Backlight Strip |
| Condition | New |
| Package Contents | 8 × LED Backlight Strips (4 Pairs) |
| Warranty | 3 Month |
| Brand | Samsung |
| Screen Size | 49 Inch |
| Panel Type | LED |
| Compatible Model 1 | Samsung UA49N5300AR |
| Compatible Model 2 | Samsung UE49M5002AK |
| Strip Configuration | 5+5 LED Paired Design |
| Number of Pairs | 4 Pairs |
| Total Strips | 8 Strips in 4 Pairs |
| SKU | TVRD-BKL-samsung-04 |
| Warranty | 90-Day Warranty |
Is your Samsung UA49N5300AR or UE49M5002AK 49 inch LED TV displaying a completely black screen while the audio continues to work? Or are you seeing dark patches appearing on specific sections of your 49 inch display? The root cause in both cases is almost always a failed LED backlight strip — and the LED Backlight Strip for Samsung UA49N5300AR / UE49M5002AK 49 Inch TV (10 LED 5+5 Configuration, 4 Pair Set) is the exact replacement solution engineered for these two specific Samsung 49 inch models.
What makes this product unique is its 5+5 paired strip configuration — a design where two strips of 5 LEDs each work together as a pair to illuminate one specific zone of the Samsung 49 inch panel. This complete 4 pair set includes all 8 strips needed for a full panel replacement — ensuring every zone of your UA49N5300AR or UE49M5002AK display receives perfectly balanced, uniform backlighting from edge to edge.
Understanding the 5+5 Paired Backlight Configuration
Samsung uses paired backlight strip layouts in select 49 inch TV models to achieve more precise brightness control across larger display areas. In the 5+5 configuration, each pair consists of two strips — one with 5 LEDs on the top section and one with 5 LEDs on the bottom section — working together to light one vertical zone of the panel. When one strip in a pair fails, that entire zone goes dark — creating a distinctive rectangular dark patch on your Samsung 49 inch screen.
Common failure symptoms specific to the UA49N5300AR and UE49M5002AK paired backlight design:
Product Highlights
Compatible TV Models
This LED backlight strip set is compatible with:
⚠️ Critical Verification: Before ordering, open your Samsung 49 inch TV panel and confirm the 5+5 LED paired strip layout, number of pairs (4) and total strip count (8). Samsung uses multiple different backlight configurations across its 49 inch TV range — never order based on screen size alone.
Why Buy From Us?
Finding the correct paired backlight strip set for Samsung UA49N5300AR and UE49M5002AK is not easy — most sellers stock only standard single-strip replacements and do not carry paired configuration sets for these specific models. As Delhi’s specialist TV spare parts store, we maintain dedicated inventory for hard-to-find Samsung backlight configurations including this 5+5 paired set.
Every strip in this set is sourced from verified suppliers, cross-checked against original Samsung 49 inch panel specifications, and individually brightness-tested before dispatch. Samsung TV repair technicians across Delhi, Mumbai, Bangalore, Chennai, Hyderabad and Kolkata rely on our parts for consistent, first-time-right repairs on these specific models.
Same day dispatch available. Fast pan India delivery. Order today and restore your Samsung UA49N5300AR or UE49M5002AK to factory brightness!
| shop now | Generic / Local | |
|---|---|---|
| Matched to exact part number | ✓ | Often "close enough" |
| Tested before dispatch | ✓ | Rarely tested |
| Replacement warranty included | ✓ | No warranty |
| Real support if something's wrong | ✓ | No |
Both the UA49N5300AR and UE49M5002AK use the same 5+5 paired backlight strip layout with 4 pairs totaling 8 strips — which is why one listing covers both models. Despite being different Samsung 49 inch model numbers sold in different markets, both share identical backlight strip specifications, making this set a verified direct fit for both TVs.
Rectangular dark patches are the signature failure pattern of a paired backlight strip design. Each pair of strips illuminates one specific rectangular zone of the panel. When one strip within a pair fails, only that zone goes dark — creating a rectangular dark patch rather than a full screen blackout. Replacing the complete 4 pair set eliminates all dark zones permanently.
Replacing a single failed pair will restore that dark zone — but the new strips will produce noticeably brighter output than the remaining older pairs. This creates a visible brightness imbalance across your Samsung 49 inch screen that cannot be corrected through picture settings. Replacing all 4 pairs simultaneously guarantees perfectly uniform brightness across every zone.
In a dark room, switch on your TV and observe which rectangular zone of the screen is dark. Each dark zone corresponds to one failed pair. However since the remaining pairs are also aged and close to failure, always replace the complete 4 pair set rather than just the visibly failed pair — this prevents repeat repairs within a short period.
No — a 5+5 paired configuration consists of two physically separate strips of 5 LEDs each, connected independently to the LED driver board. A 10 LED single strip is one continuous strip with 10 LEDs on a single PCB. These are completely different components and are not interchangeable — always verify your panel uses the paired design before ordering this set.
Yes — the UE49M5002AK is a Samsung 49 inch model sold in European markets, but it uses the same panel and backlight strip specifications as the UA49N5300AR sold in Asian markets. The 5+5 paired backlight configuration is identical across both regional variants — making this set a verified replacement for both models regardless of purchase market.
Due to the paired strip layout, installation requires careful alignment of 8 individual strips across 4 panel zones. An experienced technician completes this in 45 to 60 minutes. A first-time DIY repairer should allow 90 to 120 minutes — working slowly and methodically to ensure each pair is correctly positioned and connected before reassembling the panel.
Paired strip designs use lower powered LEDs per strip compared to single high-LED-count strips — which means each individual LED operates at higher efficiency. However the increased number of connection points in a paired design creates more potential failure points over time. Heat accumulation around connector joints is the most common cause of paired strip failure in Samsung 49 inch TVs.
Yes — since this set is manufactured to match the original 5+5 paired specifications of the UA49N5300AR and UE49M5002AK panels, replacing all 8 strips will restore your TV display to its original factory brightness level with no flickering, no dark zones and no uneven patches across the full 49 inch screen.
Yes — we stock paired and standard backlight strip sets for Samsung TVs across multiple screen sizes from 32 inch to 65 inch. If you need a paired strip set for a different Samsung model, contact us with your exact model number and we will identify the correct configuration and check stock availability for you.
