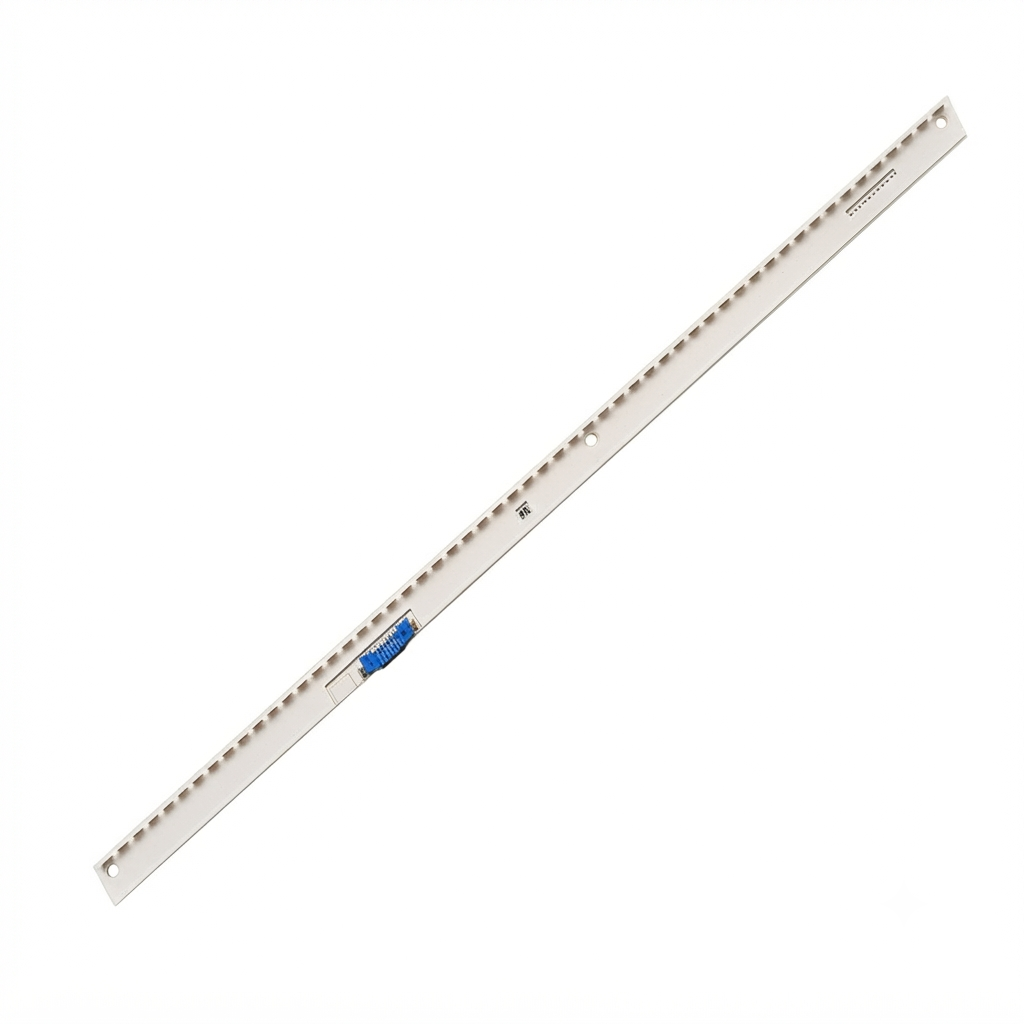

U6EY_430SM0_LED56 56 LED Backlight Strip for Samsung 43 Inch TV | 1 PCS

Samsung's U6EY series uses a high-density single strip architecture — packing 56 LEDs onto one long strip that runs the full width of the 43 inch panel. This single strip design reduces the number of connector joints inside the TV — fewer connectors means fewer potential failure points and simpler installation compared to multi-strip layouts. The trade-off is that when this single strip fails, the entire screen goes dark immediately rather than failing zone by zone.

Open your Samsung 43 inch TV back panel and locate the display module. Instead of finding multiple shorter strips, you will find one long strip running the full horizontal width of the panel. The part number label on this strip should read U6EY_430SM0_LED56. Count the LEDs — confirm exactly 56 LEDs on this single strip before placing your order.

Yes — a sudden complete screen blackout with no partial dark zones is the signature failure pattern of a single strip backlight design. Unlike multi-strip panels where one zone goes dark at a time, when the U6EY_430SM0_LED56 single strip fails, the entire display loses backlighting simultaneously. If your Samsung 43 inch TV audio works normally and the torch test shows a faint picture, the U6EY_430SM0_LED56 is almost certainly your failed component.

Replacing the U6EY_430SM0_LED56 is actually easier than multi-strip replacements despite the higher LED count. With only one strip to remove and one to install, there is no risk of mixing up strip positions or mismatching pairs. The single strip peels off cleanly from the panel backing and the new strip adheres and connects in one straightforward operation — reducing installation time significantly compared to 4, 6 or 8 strip sets.

In most LED backlight strip designs, LEDs are wired in series circuits — meaning if one LED in the circuit fails completely, the entire circuit loses continuity and the whole strip stops illuminating. This is why one failed LED out of 56 causes your entire Samsung 43 inch screen to go dark. It is also why testing all 56 LEDs for continuity before dispatch is essential — one dead LED in a new strip means the same blackout problem continues after installation.

Technically yes — individual SMD LEDs can be replaced by an experienced electronics technician with soldering skills and the correct replacement LED components. However individual LED repair on a 56 LED strip is time-consuming, requires specialist equipment, and risks damaging adjacent LEDs during soldering. For most TV owners and technicians, full strip replacement is significantly faster, more reliable and more cost-effective than individual LED repair on high-density strips.

Both are Samsung OEM single-strip backlight parts but they serve completely different panels. The U6EY_430SM0_LED56 is a 43 inch panel strip from the U6EY series carrying 56 LEDs — while the U6LF_320SF0_LED32 is a 32 inch panel strip from the U6LF series carrying 32 LEDs. Different series, different panel sizes, different LED counts, different physical dimensions — these two strips are completely non-interchangeable despite both being Samsung single strip designs.

A progressively dimming picture rather than sudden complete blackout indicates gradual LED degradation across the U6EY_430SM0_LED56 strip — multiple LEDs are weakening simultaneously rather than one LED failing completely. This is the early stage of strip failure — complete blackout typically follows within weeks of progressive dimming. Replacing the strip at this stage prevents the complete failure and also restores your TV to its original factory brightness level.

No — the U6EY_430SM0_LED56 is a direct plug-in replacement that uses the same connector as your original Samsung strip. No adapter, no converter, no soldering is required. The connector on the new strip plugs directly into the existing socket on your Samsung 43 inch TV's LED driver board — making this one of the most straightforward Samsung 43 inch backlight replacements available.

Yes — we stock multiple U6EY series variants covering different Samsung panel sizes and configurations beyond the 43 inch U6EY_430SM0_LED56. If you need a U6EY series strip for a different Samsung screen size, or if you are a TV repair technician looking to stock multiple U6EY variants, contact us with your exact part number and screen size and we will confirm availability and pricing for your specific requirement.
