100 in stock
| Compatible Brand | OnePlus |
| Compatible Model | 55UC1A00, 55UC1A, 55U1, 55Q1 Series |
| Part Number / Marking | 5800-W55000-GP00 VER02.00 20200527 N012404-000078-002 |
| Set Includes | 5 Pcs Strips - Complete Set For 1 TV (55 Inch) |
| LED Per Strip | 10 LEDs with Large Lens |
| Total LEDs in Set | 50 LEDs (5 Strips x 10 LEDs) |
| Voltage Per LED | 3V DC (Typical - VER02.00 Series Standard) |
| Configuration | 10S1P (10 LEDs in Series 1 Parallel) |
| PCB Marking | D1, D2, D3, D4, D5, D6, D7, D8, D9, D10 |
| PCB Color | White Aluminum Base |
| Connector | Side Connector with +/- Marking |
| PCB Material | Aluminum Base PCB - Best heat dissipation |
| Lens Type | Large Round Lens - 140 Degree Wide Angle |
| Color Temperature | 6500K Cold White |
| Life Span | 50000+ Hours Standard |
| Mounting | 3 Mounting Holes + Double Tape + QR Code on Back |
| Application | Fixes Sound No Picture, Black Screen After OnePlus Logo, Dark Patches, Flickering, Dim Picture visible with torch |
| Installation | Plug & Play - No Soldering - Any Technician can install 5 Pcs |
| Warranty | 3 Months Replacement Warranty |
| SKU | TVRD-BKL-oneplus-01 |
| Warranty | 90-Day Warranty |
Restore your OnePlus 55 inch 4K UHD TV original brightness with our led backlight strip for oneplus 55uc1a00 55 inch tv 10 led 5 pcs set 5800-w55000-gp00. If your OnePlus 55UC1A00 shows sound but no picture, black screen after OnePlus logo, dark shadows on screen, flickering backlight, or very dim picture only visible with torch light, this is confirmed backlight failure. This 55uc1a00 backlight strip is exact original replacement for OnePlus 55 inch model using part number 5800-W55000-GP00 VER02.00 N012404-000078-002.

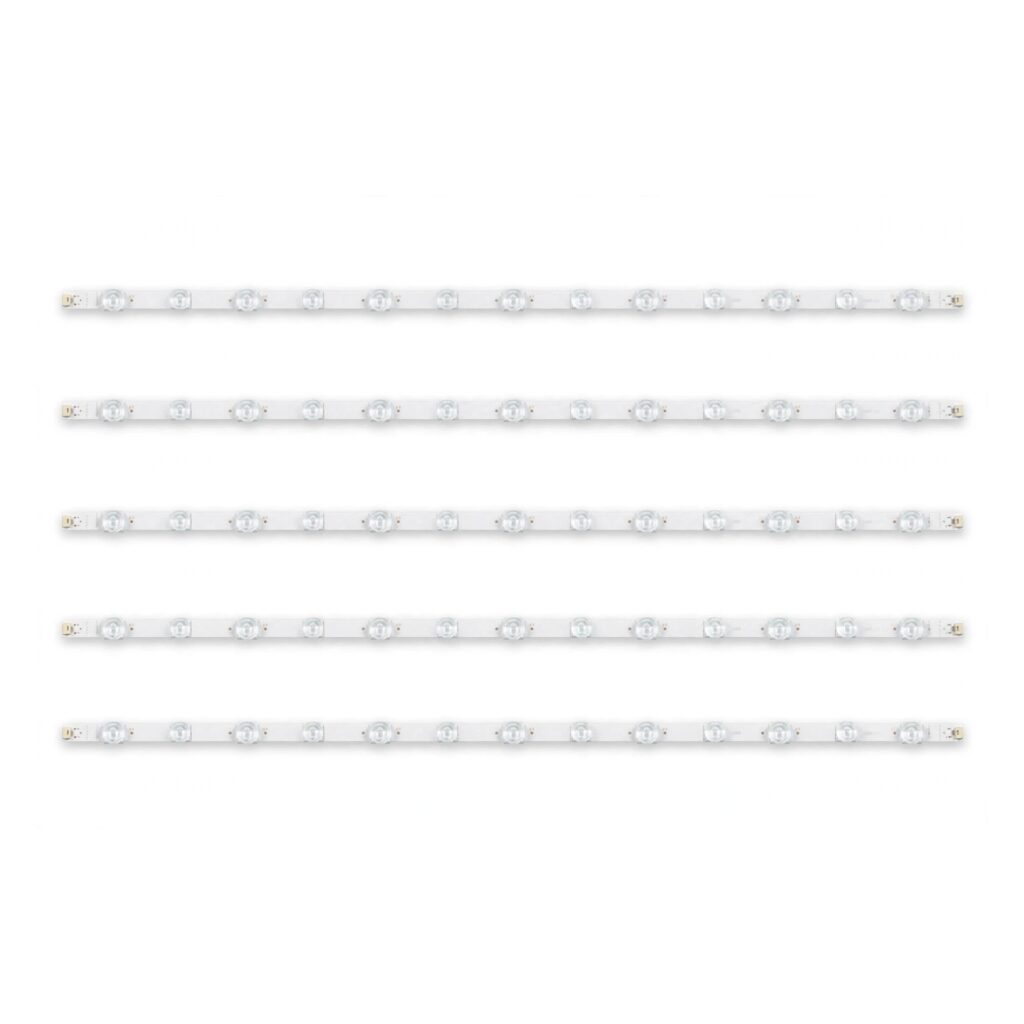

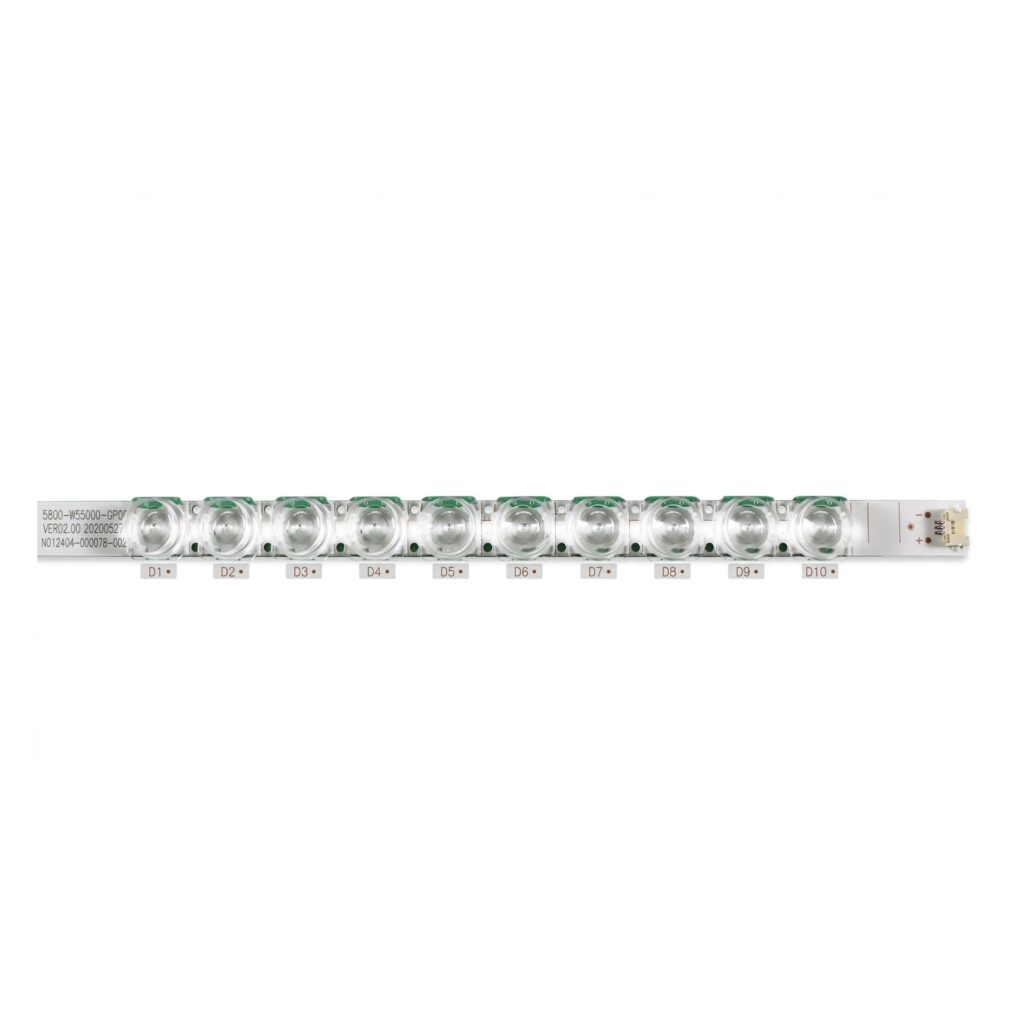

This 5800-w55000-gp00 backlight set includes 5 Pcs strips, each strip has 10 LEDs with big lens, total 50 LEDs (5 x 10) covering full 55 inch panel uniformly. Your green background photos show marking 5800-W55000-GP00 VER02.00 20200527 N012404-000078-002 with D1 to D10 designations on each LED, same as our strip. It is standard 3V technology for 55UC1A00 chassis. Length matches exact 55 inch frame, no cutting needed. First time fit guaranteed for OnePlus 55UC1A00.
Why Part Number 5800-W55000-GP00 Matching Is Most Important?
OnePlus 55 inch has multiple backlight types, some have 6 strips, some 8 strips. Your model 55UC1A00 uses 5 Pcs with 10 LEDs each and part number 5800-W55000-GP00. Our 55uc1a00 backlight strip matches by exact marking 5800-W55000-GP00 VER02.00 visible in your photo, with D1, D2, D3… D10 printed on PCB. If your old strip has same marking 5800-W55000-GP00 and has 10 LEDs, this oneplus 55uc1a00 backlight strip will fit 100% without any wiring modification. This is why technicians search 5800-w55000-gp00 backlight and 55uc1a00 backlight by part number rather than only inch size.
50 LEDs Uniform Brightness – No Dark Corners
Large 55 inch 4K panel needs even lighting. Our oneplus 55uc1a00 backlight strip uses high-power 3V LED with wide-angle round lens 140 degree that spreads light evenly across diffuser sheets. You get uniform illumination with no dark corners, no clouding, no hot spots, no flickering. 6500K cold white enhances 4K color accuracy and contrast, picture becomes 45% brighter than old degraded strips. Total 50 LEDs ensures complete coverage. This led backlight strip for oneplus 55uc1a00 55 inch tv 10 led 5 pcs set 5800-w55000-gp00 is brightness tested before dispatch from Delhi 110063.
Aluminum PCB & Long Life For OnePlus Premium TV:

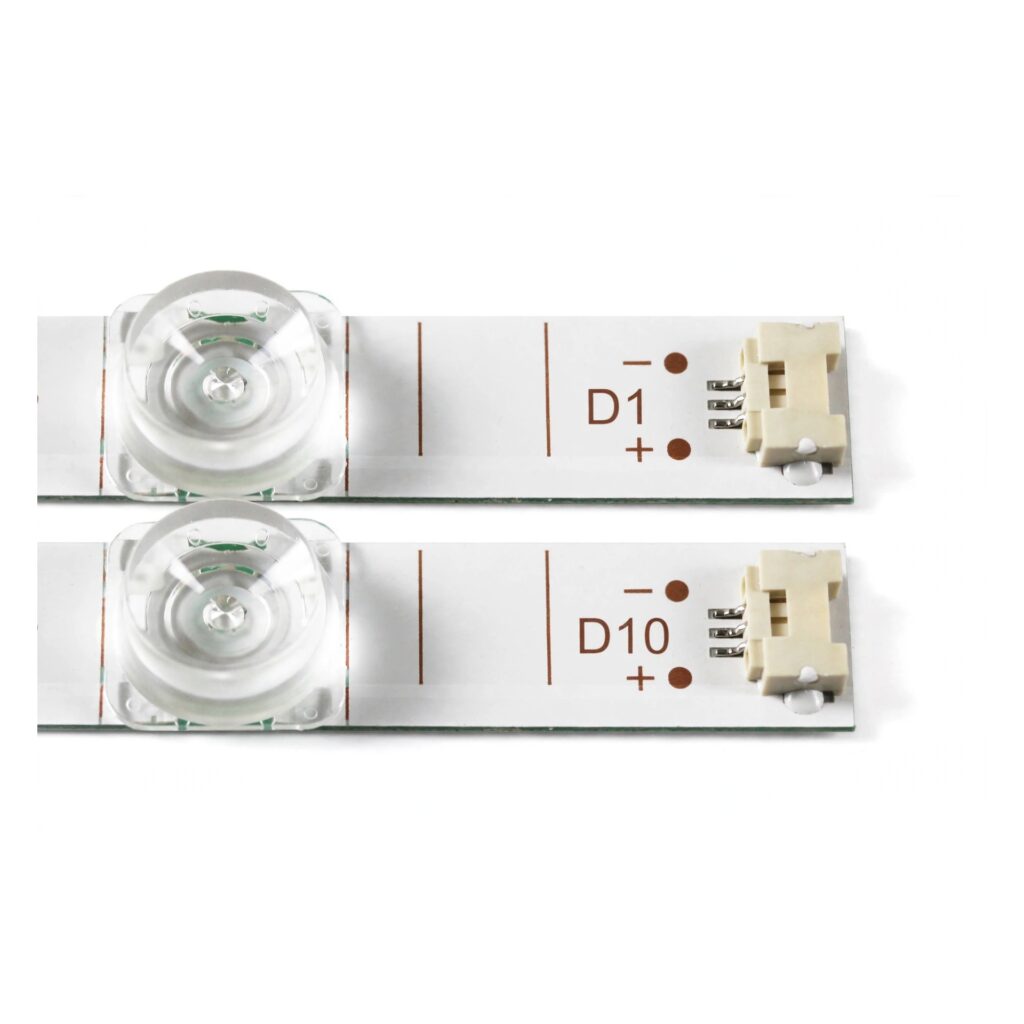

This 5800-w55000-gp00 backlight has aluminum base PCB that dissipates heat 3x faster than fiber PCB, preventing repeated failure which is common in OnePlus 55UC1A00. Original 3V per LED consumes optimized power and stable. Pre-punched mounting holes align perfectly with OnePlus 55UC1A00 backlight plate. Standard side connector with +/- marking as seen in your photo, plug and play. Any technician can replace full 5 Pcs Set in 20 minutes. No soldering required.
Compatibility Check Before Order:
Before ordering led backlight strip for oneplus 55uc1a00 55 inch tv 10 led 5 pcs set 5800-w55000-gp00, open back cover and check old strip. If your old strip has 5800-W55000-GP00 VER02.00 / N012404-000078-002 and has 10 LEDs D1-D10, this 5 Pcs Set is 100% compatible. Count strips – if your TV has 5 strips inside, this complete set is for one TV. Send photo of old strip on WhatsApp for free check from TV Repair Delhi.
Order your 55 inch tv backlight 10 led 5 pcs today and restore your OnePlus 55UC1A00 original bright 4K picture with same day dispatch and 3 months warranty.
| shop now | Generic / Local | |
|---|---|---|
| Matched to exact part number | ✓ | Often "close enough" |
| Tested before dispatch | ✓ | Rarely tested |
| Replacement warranty included | ✓ | No warranty |
| Real support if something's wrong | ✓ | No |
OnePlus 55UC1A00 has 5 Pcs backlight strips, each strip has 10 LEDs. Total 50 LEDs. Part number is 5800-W55000-GP00 VER02.00.
Yes, if you have sound, black screen after OnePlus logo, or you can see dim image with torch light, it is confirmed 5800-W55000-GP00 backlight failure. Replacing full 5 Pcs set fixes it.
5800-W55000-GP00 is 3V per LED, 10S1P configuration. Each strip has 10 LEDs in series. Total 5 strips for 55 inch panel.
5800-W55000-GP00 VER02.00 N012404-000078-002 is made for OnePlus 55UC1A00, 55UC1A and 55U1 models. Check old strip marking D1-D10 and 10 LEDs before order.
Always replace complete 5 Pcs set. If one strip fails, others are also weak. New 50 LEDs set gives uniform brightness with no dark corners and long life.

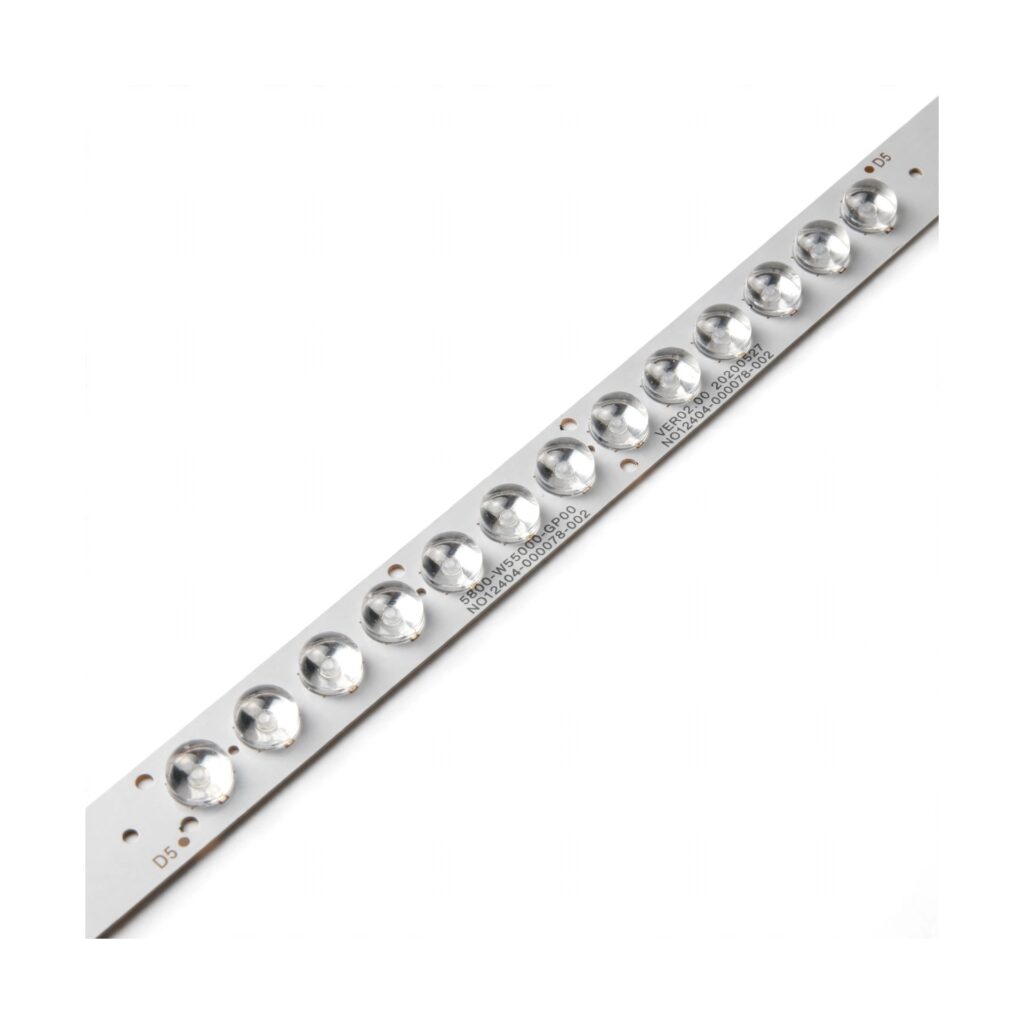

The part number is 5800-W55000-GP00 VER02.00 N012404-000078-002 printed on PCB. It has marking D1 to D10 for 10 LEDs per strip, 5 Pcs set for 55 inch.
Backlight fails due to heat on fiber PCB. Our 5800-W55000-GP00 strip uses aluminum base PCB with 3V stable LEDs and 140 degree big lens for better heat dissipation and long life 50000+ hours.
Yes, it is plug and play with side connector and 3 mounting holes. No soldering needed. Any TV technician can replace 5 Pcs set in 20 minutes. Full brightness tested before dispatch from Delhi.
Yes, 50 LEDs with 6500K cold white and large lens gives uniform brightness. It fixes dark corners, yellow patches, shadow, flickering and dim picture problem in OnePlus 55UC1A00.
Buy original 5800-W55000-GP00 10 LED 5 Pcs set from Delhi with same day dispatch, COD, 3 months warranty and hard box packing. Compatible with 55UC1A00, 55UC1A, 55U1.
