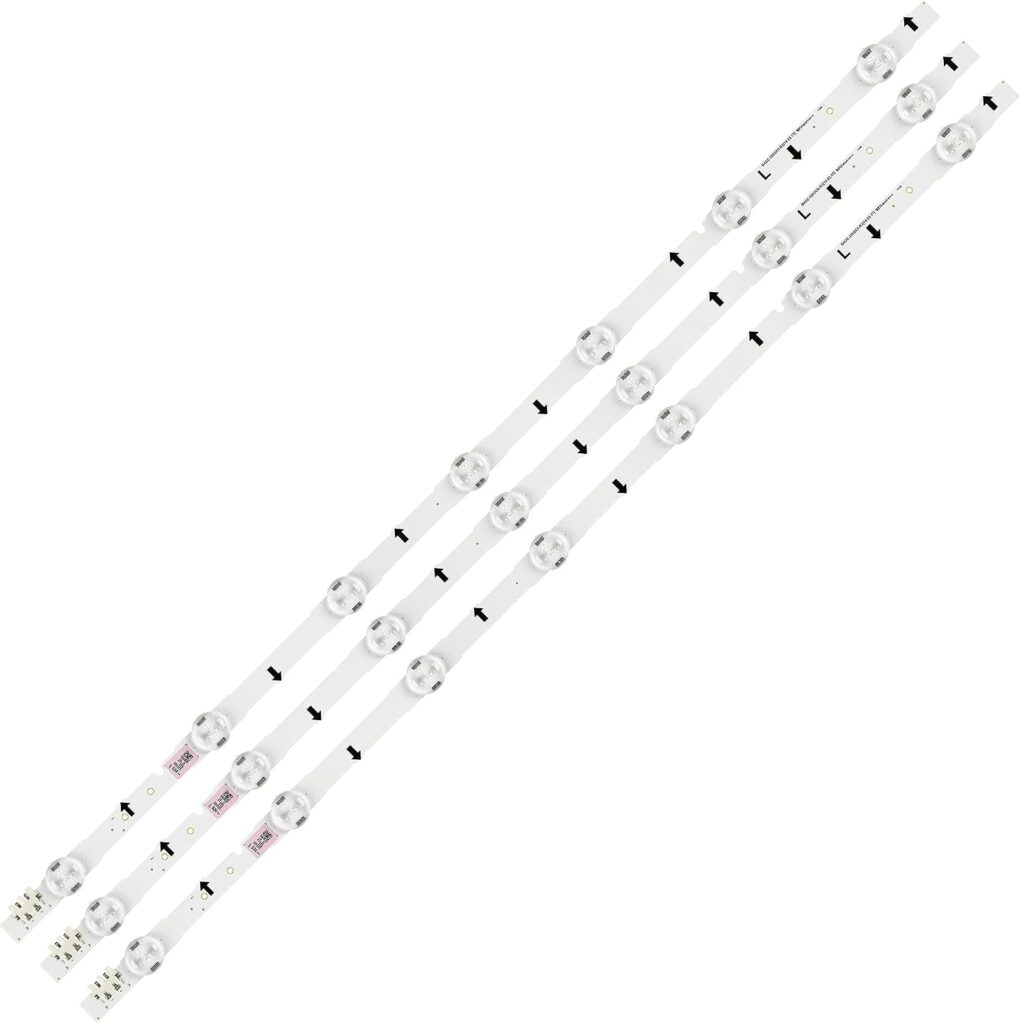

2014SVS32HD LED Backlight Strip for Samsung 32 Inch TV | 7 LED 3V | 3 PCS Set

The 2014SVS32HD part number carries specific information about your Samsung TV panel. 2014 indicates the strip was manufactured for Samsung panels produced in 2014. SVS is Samsung's internal backlight strip series designation. 32 confirms compatibility with 32 inch panels specifically. HD tells you the panel resolution is High Definition — distinguishing it from Full HD or 4K variants of Samsung 32 inch panels that use entirely different backlight strips.

The easiest way is to check your TV's original box or user manual — it will clearly state whether your Samsung 32 inch TV has an HD (1366x768) or Full HD (1920x1080) display. Alternatively open the TV panel and check the strip part number directly — HD panels use 2014SVS32HD while Full HD panels use different SVS series part numbers. Never substitute an HD strip with a Full HD strip or vice versa.

The 2014SVS32HD configuration uses a 3 strip layout — a design choice Samsung made for this specific 32 inch HD panel generation to distribute backlighting more evenly across the horizontal panel width. Other Samsung 32 inch panels from different years or resolutions may use 2, 4 or even 6 strips. Always count your existing strips before ordering rather than assuming strip count based on screen size.

Not necessarily — 2014 in the part number refers to the panel production year, not the TV purchase year. Samsung TVs are sometimes sold 6 to 12 months after their panels are manufactured. A TV purchased in late 2014 or even early 2015 could still use a 2014SVS32HD panel. The only reliable confirmation is reading the part number directly from your existing backlight strip inside the TV panel.

The 2014SVS32HD is specific to Samsung 32 inch HD panels manufactured in 2014 — it should not be assumed compatible with Samsung 32 inch TVs from 2012, 2013, 2015 or later years, even if they are also HD resolution models. Samsung updated its backlight strip specifications year by year — strips from different production years have different physical lengths, connector positions and LED counts that prevent cross-year substitution.

A horizontal dark band appearing in the lower section of your Samsung 32 inch screen indicates that the bottom backlight strip in the 3 strip layout has failed while the upper two strips continue functioning. Since the 2014SVS32HD uses a horizontal strip arrangement, each strip illuminates a specific horizontal section of the panel — when one strip fails, its section goes dark while adjacent sections remain lit.

Operating your TV with a failed backlight strip is not recommended for extended periods. The LED driver board continues sending power to the failed strip — and a partially shorted LED can cause irregular voltage spikes that damage the driver board over time. Replacing the complete 3 PCS set promptly protects your driver board from secondary damage caused by operating with faulty strips.

Before removing your old strips, photograph the existing layout from multiple angles — capturing each strip's position, orientation and connector location clearly. The 2014SVS32HD strips in a 3 strip layout have specific top, middle and bottom positions. Installing strips in incorrect positions can cause the panel's optical diffusion layers to misalign, resulting in uneven brightness even with new working strips.

A successful 2014SVS32HD replacement will restore your Samsung 32 inch TV to its original 2014 factory brightness specification — which in a well-maintained HD panel should feel like a significant improvement compared to the gradually dimming display you experienced as the original strips aged toward failure. New strips also eliminate the flickering and startup shutdown issues that characterise failing 2014SVS32HD strips.

Yes — we stock multiple Samsung SVS series backlight strips covering different production years and panel sizes including 2013SVS32, 2015SVS32, 2014SVS40, 2014SVS43 and other SVS series variants. If you need an SVS series strip for a different Samsung panel year or size, contact us with your exact part number and we will confirm availability and dispatch timeline for your specific Samsung repair requirement.
